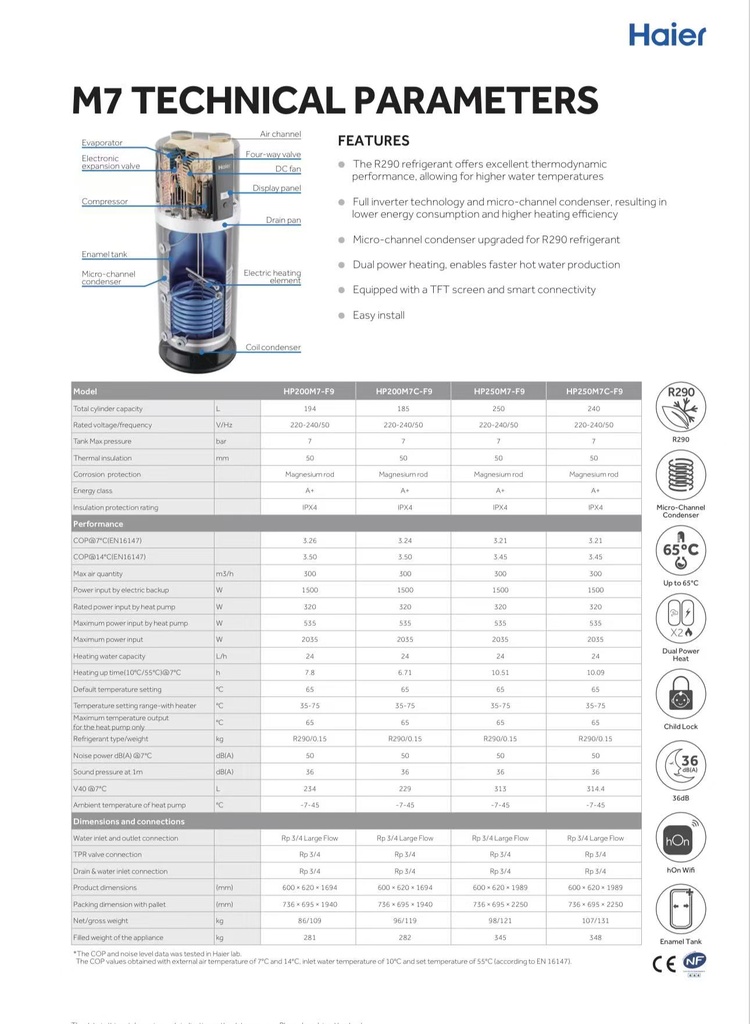

Haier warmtepomp boiler
R290 HPM7 250L specificaties
Tank
Model R290 M7
Tank volume (L)250
Rated voltage/ frequency (V/Hz) 220-240V/50Hz
Tank rated pressure (bar) 7
Extra exchanger design / area No
Corrosion proof Magnesium anode
Performance
Type of air extraction: Ambient / Exterior
COP @7°C (EN16147): 3.21
COP @14°C (EN16147): 3.45
Tapping cycle (EN16147): L
Electric backup power: 1500 W
Rated power input by heat pump: 320 W
Maximum power input by heat pump: 535 W
Maximum power input: 2035 W
Standby power input: 27 W
Maximum usable hot water at 40°C (V40): 311 L
Heating up time @7°C: 10.51 h
Heating up time @14°C: 10.09 h
Default temperature setting: 65°C
Temperature setting range with heater: 35°C – 75°C
Temperature setting range heat pump only: 35°C – 65°C
Refrigerant
Refrigerant type / weight: R290 / 0.15 kg
Noise power level: 50 dB(A)
Working temperature range: -7°C – 45°C
Dimensions and Connections

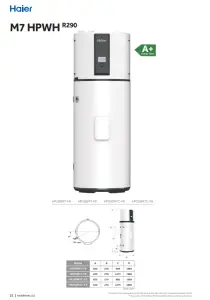

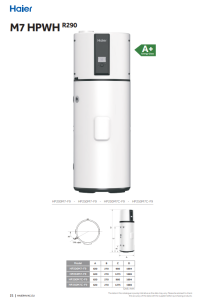

Product dimensions (W × D × H):
600 × 620 × 1989 mm
Packaging dimensions (W × D × H):
736 × 695 × 2250 mm
Gross weight: 121 kg
Net weight: 98 kg
Filled weight of appliance: 345 kg

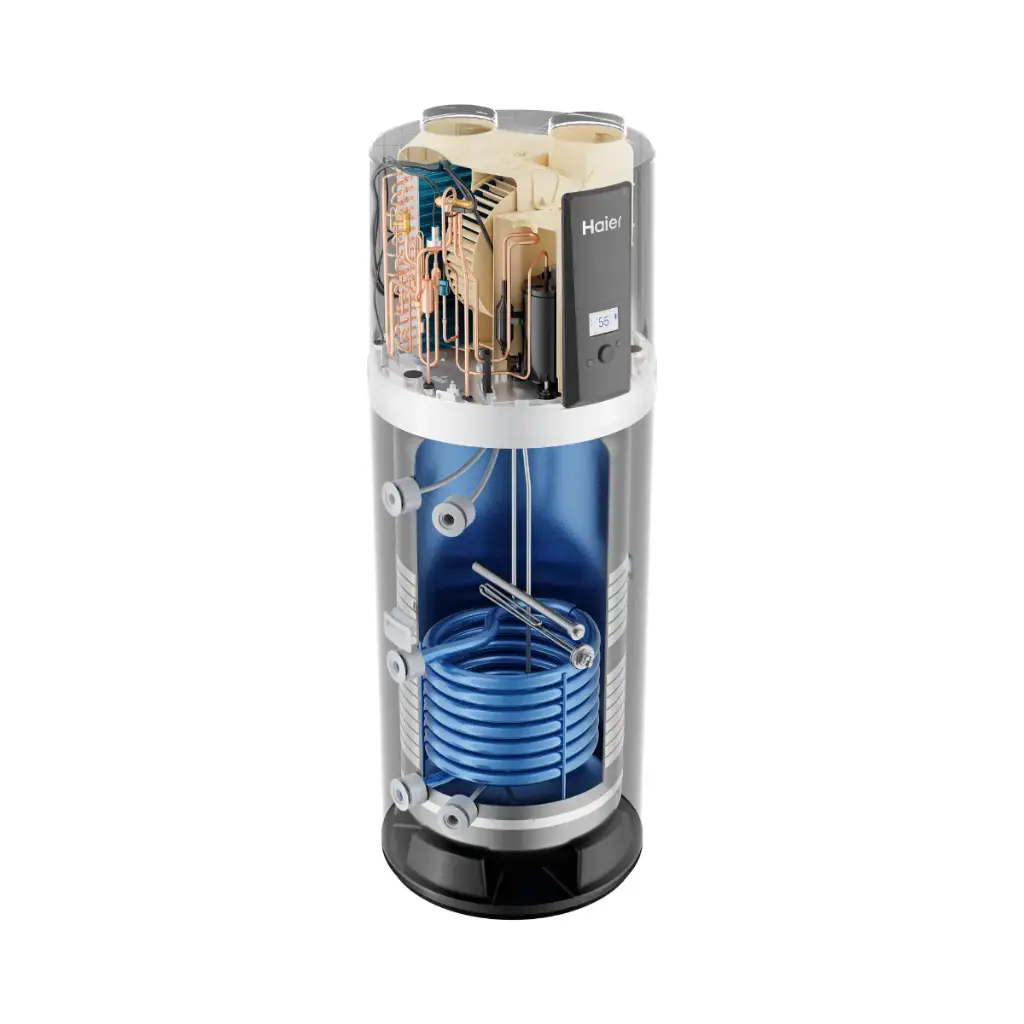

Energy Saving Technology
With micro-cellular polyurethane foam insulation technology,
the boiler can save up to 40% more energy compared with traditional products.
